WIRELINE LIFT FRAME SYSTEMS

POWERWIRE
LIFT FRAME

520 / 770-ton wireline lift frame systems for ultra-deepwater work — supporting electric line and slickline operations with a compact rig-floor footprint and improved safety, transportability, and efficiency.

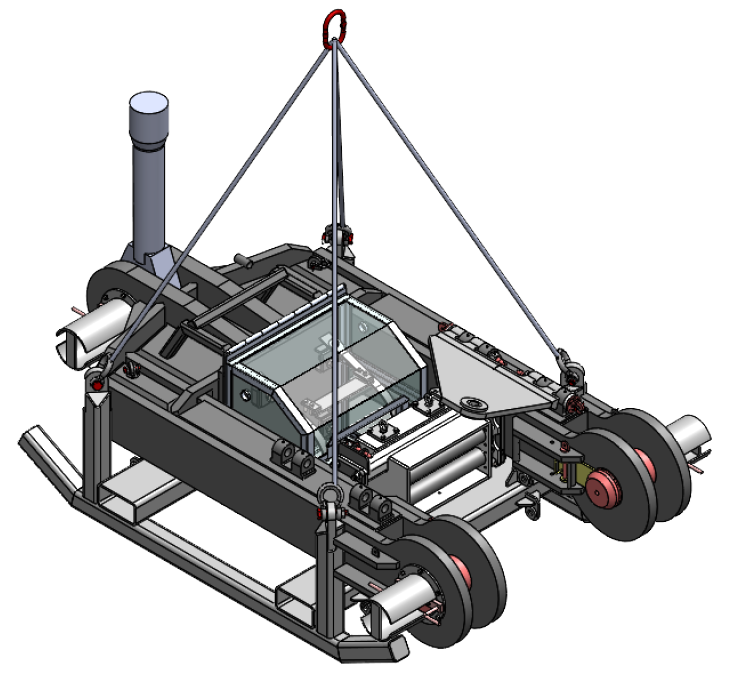

LIFT MODE

520 / 770 Ton

RATED SYSTEMS

10K / 15K lb.

HOIST OPTIONS

40,000 lb.

E-FRAME CAPACITY

6-5/8" – 5-1/2"

LIFT SUB OPTIONS

API 8C / DNV

COMPLIANCE

KEY FEATURES

520 / 770-ton rated systems

Combined product family covering both 520-ton and 770-ton lift frame options.

Hydraulic hoist options

Available with 10,000 lb. and 15,000 lb. hydraulic hoist configurations.

E-line & slickline compatible

E-frame swing arms support both slickline and electric line operations.

Safety-focused design

Dropped-objects tested with attached safety pins and protected smaller components.

Rig-floor control

Compact control stand provides improved control of lift speed from the rig floor.

Transport mode

Easily converts from lift mode to transport mode for movement and staging.

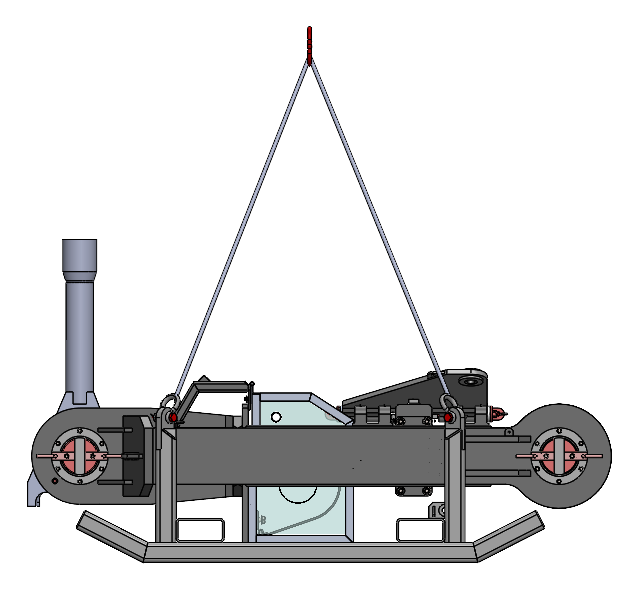

LIFT MODE ⇄ TRANSPORT MODE

The frame converts quickly between lift and transport configurations, simplifying movement, staging, and rig-up while minimizing interference with ongoing operations.

1029 Maurice Rd. · Broussard, LA 70518

SuperiorPerformance.cominfo@superiorperformance.com800.210.9103

POWERWIRE SYSTEM OVERVIEW

AVAILABLE CONFIGURATIONS

RATED SYSTEM520 ton / 770 ton

DIMENSIONS12.30' L x 8.40' W x 3.11' H

GROSS WEIGHT21,000 lbs.

BAIL-TO-BAIL CENTER WINDOW4.58' W

LIFT SUB OPTIONS6-5/8" / 5-7/8" / 5-1/2"

HYDRAULIC HOIST10,000 lbs. / 15,000 lbs.

COMPATIBILITYElectric line and slickline

TRANSPORTConverts from lift mode to transport mode

APPROVALS / TESTINGDNV and ABS approved; dropped-objects tested

COMPLIANCEClass 1 Division 1 · D.V.2 compliant

OPERATION & SAFETY FOCUS

Lift frame connects with an interchangeable pivoting / articulating lift sub.

Rotating E-frame swing arms support slickline and E-line operations.

Hydraulic hoist provides controlled lifting with anti-two-block protection.

Basket, safety pins, and dropped-objects testing support safer rig-floor operations.

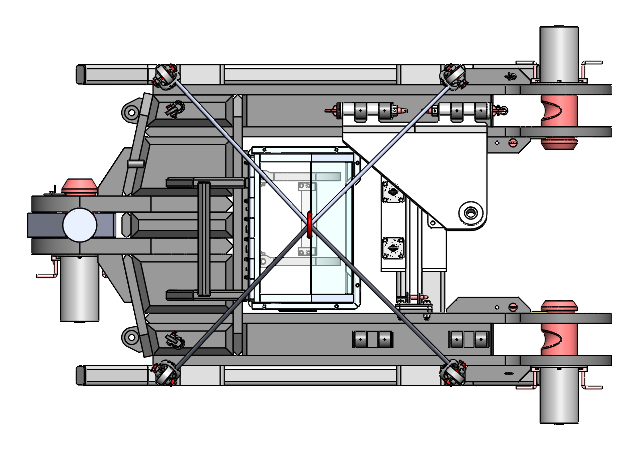

TOP VIEW

OPERATIONAL HIGHLIGHTS

Ready for ultra-deepwater work

E-frame swing arms for slickline and E-line

Dual brake system with anti-two-block protection

Designed and engineered to API 8C, DNV E-101 & DNV 2.7-3

Engineered for minimal interference with ongoing operations
