SURFACE FLOW TREE SYSTEMS

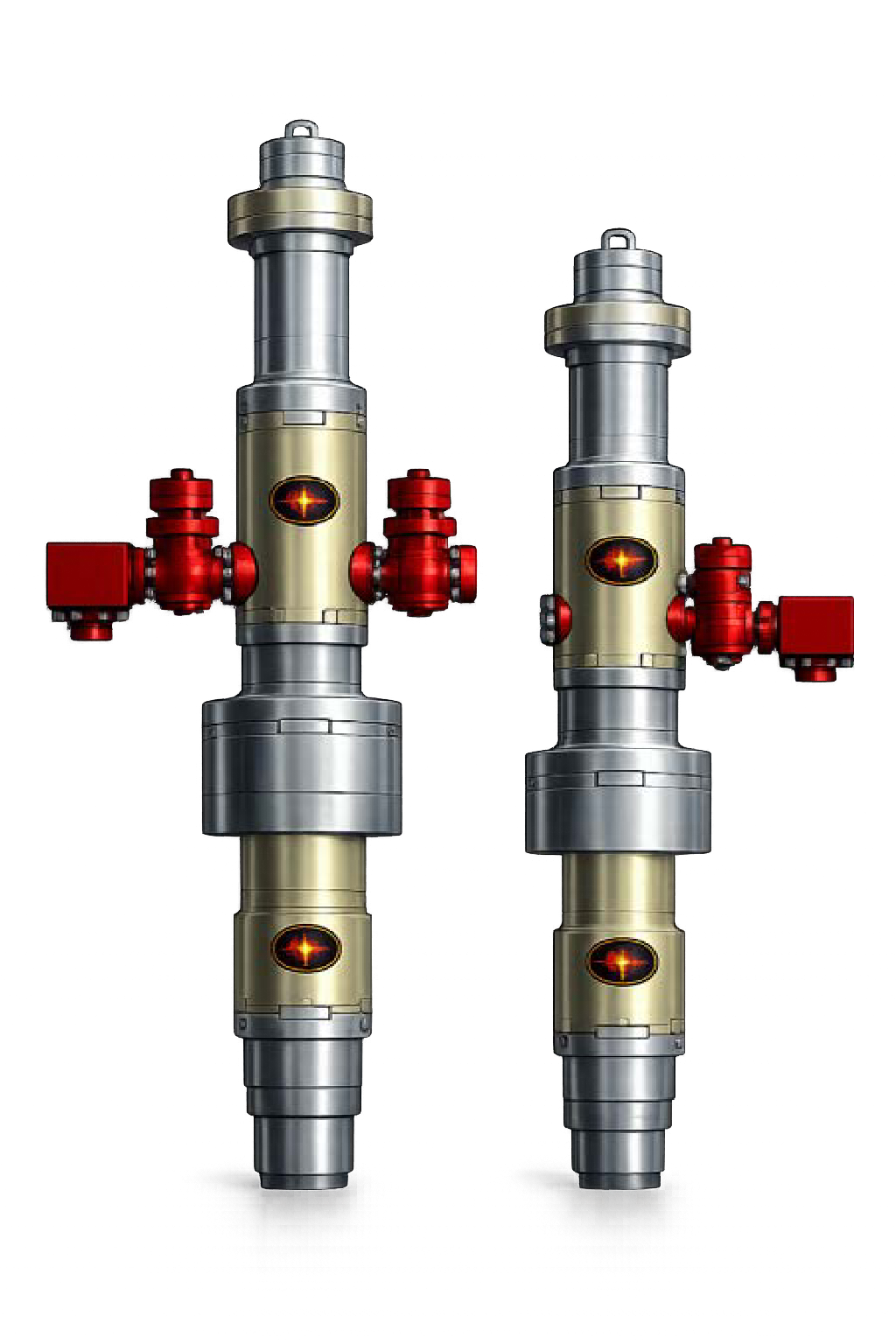

POWERXFLOW
FLOW TREE

500 / 750-ton surface flow tree systems for deepwater completions, workovers, and P&A campaigns — designed for non-flowback operations with a compact, rig-friendly layout and reliable high-pressure flow control.

DUAL & SINGLE WING

500 / 750 Ton

RATED SYSTEMS

10K / 15K

PRESSURE (PSI)

Up to 6.500"

ID OPTIONS

Hydraulic

BALL VALVES

API 6A

COMPLIANCE

KEY FEATURES

500 / 750-ton rated systems

Product family covering 500-ton and 750-ton surface flow tree configurations.

10K / 15K working pressure

Available pressure ratings for deepwater completion and intervention applications.

High-capacity bore

Up to 6.5 in. ID design for high-flow operational requirements.

Hydraulic flow control

Hydraulic inline ball valves with integrated hydraulic control panel options.

Bearing swivel

Swivel design supports quick, aligned rig-up and safer handling at well center.

Rig-friendly installation

Lightweight, compact design with adapters and crossovers available.

OPERATION & SAFETY FOCUS

Connects at well center with lift-sub / flange options

Hydraulic inline valves for controlled isolation and flow management

Bearing swivel assists quick, aligned rig-up and handling efficiency

Adapters, crossovers, and wing-valve options for job-specific configurations

1029 Maurice Rd. · Broussard, LA 70518

SuperiorPerformance.cominfo@superiorperformance.com800.210.9103

POWERXFLOW SYSTEM OVERVIEW

AVAILABLE CONFIGURATIONS

RATED SYSTEM500-ton / 750-ton

WORKING PRESSURE10,000 psi / 15,000 psi

INTERNAL DIAMETER6.500" / 5.750" / 5.625" ID

TOP / LIFT CONNECTION10-3/4 in. lift-sub w/ 7-1/16" or 5-1/8" & 15K or 10K flange

VALVESHydraulic actuated master ball valves w/ plug valve wings

SIDE OUTLETS2 in. or 3 in. WECO 1502 flow and kill side outlets

BOTTOM CONNECTIONGTM-69 / MaXit™ 807 / TT-M710

TENSILE LOAD1,000,000 lbs / 1,500,000 lbs at full operating pressure

WEIGHT19,125 lbs total weight

DESIGN / COMPLIANCEAPI 6A 19th Edition · PSL 3G

OPERATIONAL HIGHLIGHTS

Designed for non-flowback operations

Ready for deepwater subsea completions, workovers, and P&A

Swivel for quick and easy rig-up

Dropped-objects certified and load-tested design

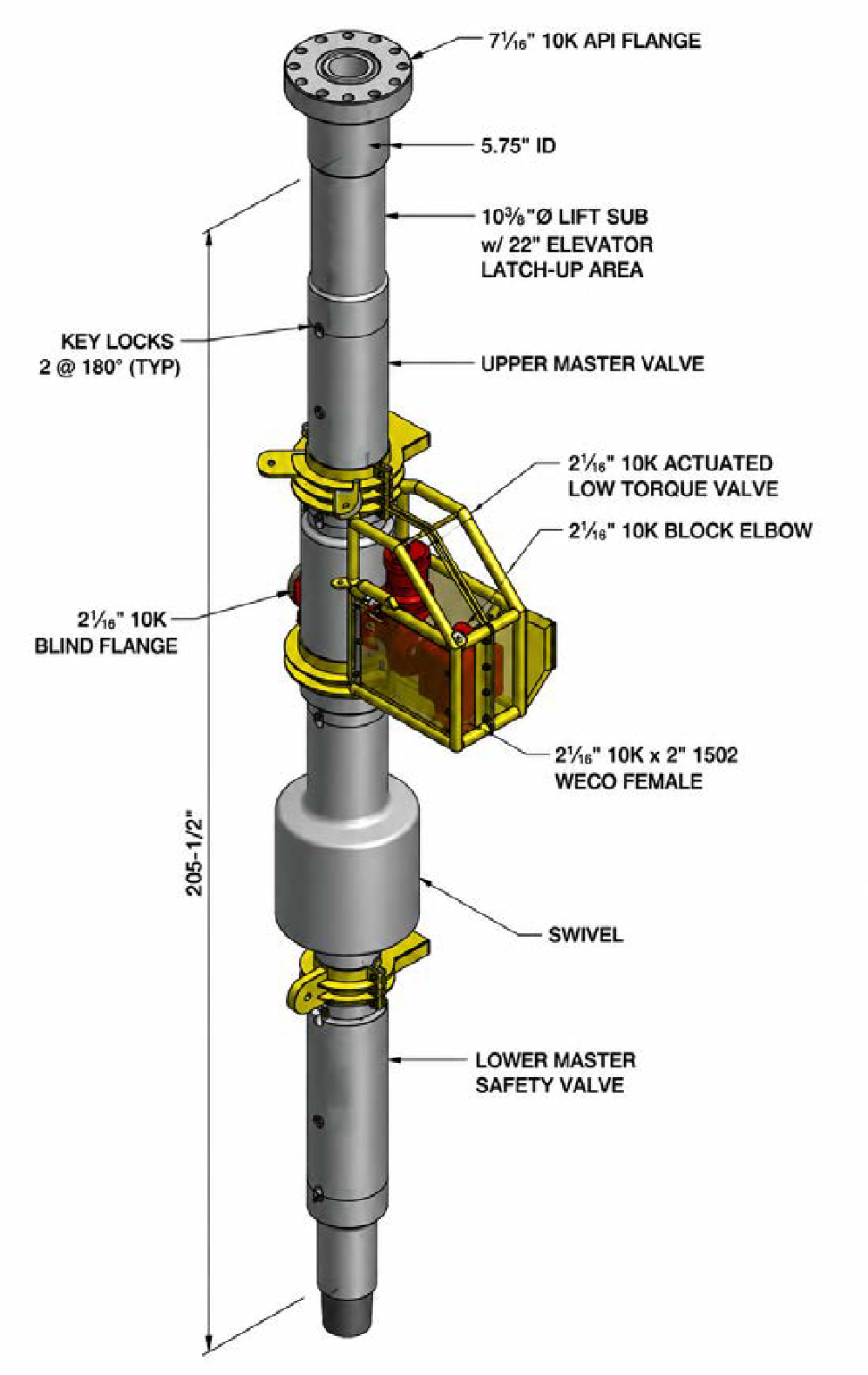

PowerXFlow stack-up example, labeled diagram

STACK-UP EXAMPLE: 10K SINGLE WING, 5.75" ID
