Superior Performance
SUBSEA UMBILICAL PROTECTION
UMBILICAL
C-PLATE
Protects subsea umbilicals at the surface as they pass through the rig-floor rotary area, with controlled alignment through well center.

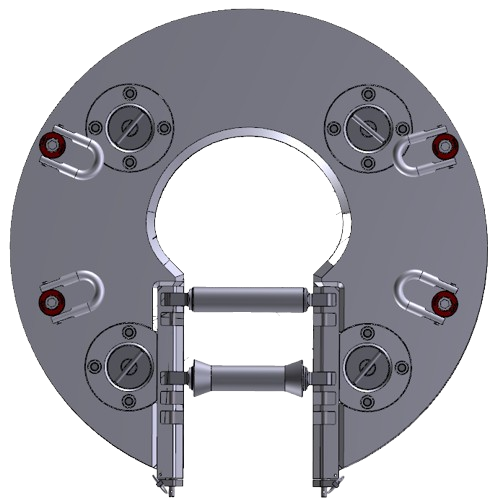

Umbilical C-Plate, top view
TOP VIEW
36-1/2"
OVERALL DIAMETER
14-1/2"
INTERNAL DIAMETER
25-3/4"
LOCKING PIN DIA.
19"
MIN. THRU-BORE
KEY FEATURES
Adjustable roller system
Configurable rollers accommodate varying umbilical ODs with smooth, controlled travel.
Surface umbilical protection
A dedicated protective interface through the rig-floor rotary area.
Quick locking installation
Locking pin design for efficient installation, positioning, and removal.
Accurate well-center placement
Swiveling lifting eyes assist controlled placement over well center.

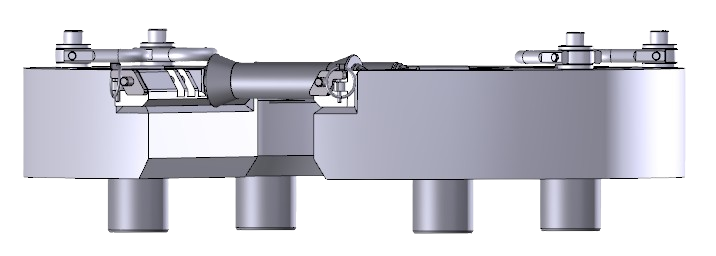

Side profile
ROTARY BUSHING COMPATIBILITY
NOV MPCH Hinged Master Bushing
NOV MSPC Solid Master Bushing
NOV MBH 1250 with Drilling Bowl or LSB Landing String Bowl
